TOC : Basic Features > Save Report >



TIF File Option

Top  Previous  Next

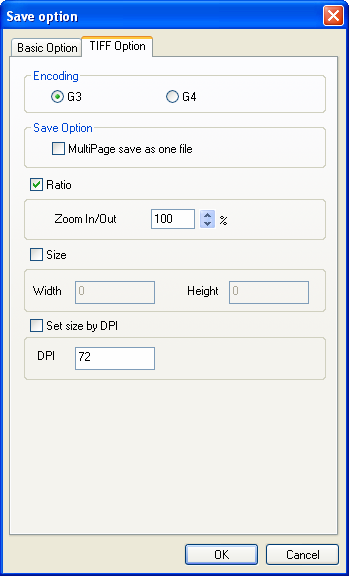

Save dialog appears by clicking Save icon() on the toolbar.  If select "Tagged Image Format File(*.tif)" file format and click [Option] button,

Save Option dialog appears and it shows the TIFF Option tab in addition to Basic Option tab.



Encoding :

G3 : Use G3 encoding style

G4 : Use G4 encoding style

Save Option :

MultiPage save as one file : Save all pages of the report in one file

Ratio :

Zoom In/Out : Zoom ratio for saving TIF image in a file.

Size :

Width : width of TIF image

Height : height of TIF image

Set size by DPI :

auto sizing of image by resolution

DPI : DPI of TIF image
